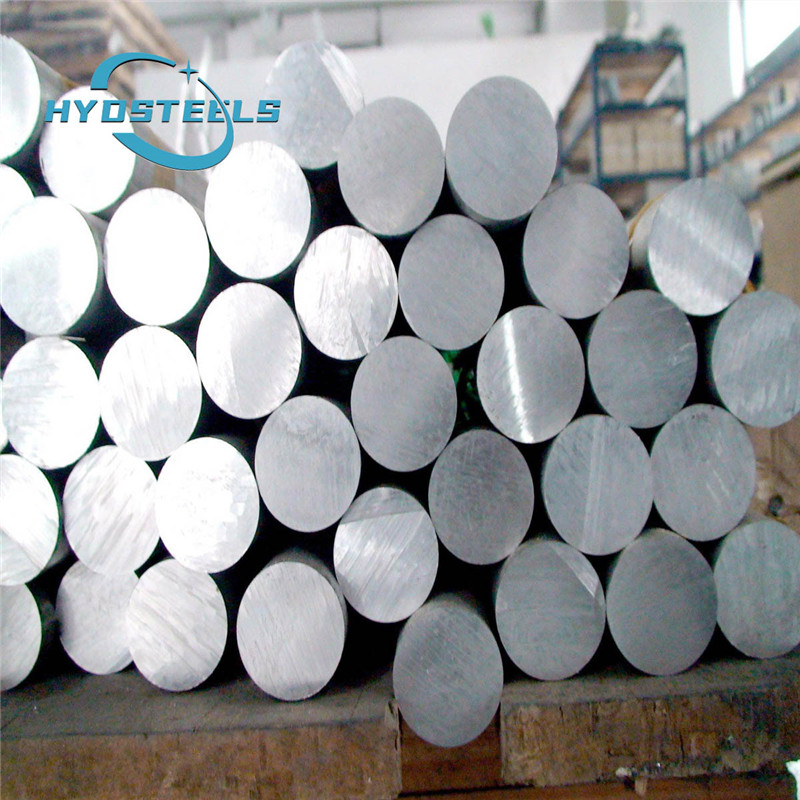

Hydraulic Cylinder Ck45 Hard Chrome Plated Piston Rod

Specification:

Name: Chrome rod

Steel Grade: C45E (EN 10083)

Tolerance: ISOf7

Roundness: Diameter tolerance / 2

Standard Length:

 -for Ø ≤ 60 mm: 5600 -6200mm

-for Ø≥60 mm: 5800 -7200mm

Surface Roughness: Ra max. 0.20 µm

(statistic average: 0.05-0.15 µm)

Chrome Layer Thickness:min. 900 HV (0.1)

Straightness:

≤ Ø16 mm: max. 0.3 mm: 1000 mm

> Ø16 mm: max. 0.2 mm: 1000 mm
