Chrome Bar And Chrome Plated Rod Suppiler
Chrome Plated Bar description
Chrome plated bar/Chrome Plated Rod usually manufactured from cold rolled or hot rolled carbon steel round bars, The surface of the electroplated coating of the chrome-plated rod after treatment has no blackening, peeling, no wrinkling, no pinholes, and the surface of the coating is smooth. Chrome plated bars are the most important parts of manufacturing hydraulic cylinders.
Chrome plated rods are also known as hard chrome plated shafts, chrome steel bar, chrome plated shafting, and chrome rod for hydraulic cylinders.
Hard Chrome Plated Hydraulic Cylinder Piston Rod
Size: | OD: 40-320mm ID :30-280mm |
Length: | 1m -9m |
Material: | CK45/ ST52/ 20MnV6/ 42CrMo4/ 40Cr/ bearing steel/ stainless steel |
Tolerance | ISO f7 |
Chrome thickness: | 20~30micron |
Hardness of the chrome layer: | 800HV (min) |
Roughness: | Ra 0.2micron (max) |
Straightness: | 0.2/1000mm |
Yield Strength | ≥350 M p a |
Tensile Strength | ≥580 M p a |
Elongation | ≥ 15% |
Supply condition: | 1.Hard chrome plated |
2.Induction hardened | |
3.Quenched & Tempered | |
4.Induction hardened with Q&T |
Chemical Composition
Material | C% | Mn% | Si% | S% | P% | V% | Cr% |
Ck45 | 0.42-0.50 | 0.50-0.80 | 0.17-0.37 | ≤0.035 | ≤0.035 | ≤0.25 | |
ST52 | ≤0.22 | ≤1.6 | ≤0.55 | ≤0.04 | ≤0.04 | 0.02-0.15 | |
20MnV6 | 0.17-0.24 | 1.30-1.70 | 0.10-0.50 | ≤0.035 | ≤0.035 | 0.10-0.20 | ≤0.30 |
42CrMo4 | 0.38-0.45 | 0.50-0.80 | 0.17-0.37 | ≤0.035 | ≤0.035 | 0.07-0.12 | 0.90-1.20 |
40Cr | 0.37-0.45 | 0.50-0.80 | 0.17-0.37 | ≤0.035 | ≤0.035 | 0.80-1.10 |
Material | T.S N/MM2 | Y.S N/MM2 | E%(MIN) | CHARPY | CONDITION |
CK45 | 610 | 355 | 15 | >41J | NORMALIZE |
CK45 | 800 | 630 | 20 | >41J | Q + T |
ST52 | 500 | 355 | 22 | NORMALIZE | |
20MnV6 | 750 | 590 | 12 | >40J | NORMALIZE |
42CrMo4 | 980 | 850 | 14 | >47J | Q + T |
40Cr | 1000 | 800 | 10 | Q + T |

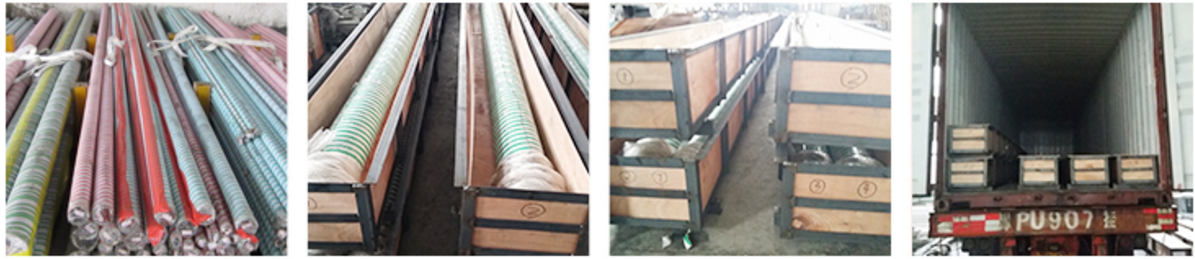

Packing and delivery
Seamless Honed tube Packaging Details:
1. Small OD: In hexagonal bundle with steel strips
2. Large OD: In bulk
3. Wrapped in waterproof plastic woven bag
4. Filled in wooden cases
5. As required
Delivery Detail: Shipped in 7-15 days afterreceived the balance payment
Why choose us
1.Extensive production experience: more than 20 years manufacturing experience for honed tube and chrome plated rod, in Australia, Peru, Chile, Thailand, Singapore,Columbia,Canada, Mexico,US,Saudi Arabia,Brazil, India, Iran, Indonesia and other countries have long-term buyers.
2.Advanced production equipment: cold drawing machine, honing machine, skiving & roller burnishing machine, straightening machine, polishing machine, heat treatment furnace, grinding machine, etc. We have professional technicians do regular scheduled maintenance on these machines to guarantee them work well.
3.High quality raw material: our raw material mainly from some famous steel mills, such as TPCO, BAO STEEL, SHA STEEL, which are best and largest raw material manufacturer in China.
4.High precision: Honed Tube, inside surface roughness 02-0.4 um, straightness max 0.5/1000, strict tolerance DIN2391 H8. Skived & Roller Burnished Tube, inside surface roughness under 0.2 um, straightness max 0.2/1000, strict tolerance DIN2391 H8. Chrome Plated Rod, chrome layer 10 micron to 100 micron, strict tolerance ISO f7.
Please contact :
Ginger
Mob. & WhatsApp: +86 13336363960
Email: ginger@dhonedtube.com
