Chrome Bar And Chrome Plated Rod Manufacturers
Company description:
Our company mainly produces various specifications hydraulic cylinder tube and chrome steel rod
which are widely used in hydraulic and Pneumatic cylinder for automobile,
engineering machinery, textile machinery, printing machinery, oil drilling and other field
What we can provide are seamless steel tube, cold drawn steel pipe, cold rolled steel tube,
honed steel tube, hydraulic cylinder tube, ready to honed tube, etc.
Product description：
1. Material: CK45, SAE1045, 4140, 4340, JIS45C, 40Cr, 42CrMo
2. Diameter: Φ 6-500 mm
3. Length: max 16m
4. Chrome layer: 20 micron (min)
5. Hardness of the chrome layer: 800HV-1150HV
6. Roughness: Ra ≤0.2u
7. Straightness: ≤ 0.2/1000
8. Diameter tolerance: ISO f7
9. Roundness: the deviation of roundness is 50% of the diameter tolerance at the most.
10. Supply condition: Hard chrome plated/ Hardened and tempered/ Induction hardened
11. Packing: Anti rust oil to be spread on rod surface and each rod to be packed in paper roll and then in wooden case.
Product Name | Hard chrome plated Hydraulic cylinder piston rod | |
Diameters | 6-300mm | |
Length | 100mm-1200mm | |
| DIN CK45 | |
Tolerance | ISO f7 | |
Chrome thickness | 20μm(min) | |
Hardness of the chrome layer | 850H V(min) | |
Roughness | Ra 0.2μm(max) | |
Straightness | 0.2/1000mm | |
| Yield strength≥20Mpa | |
| 1.Hard chrome plated | |
2.Induction hardened | ||
3.Quenched & Tempered | ||
4.Induction hardened with Q&T |

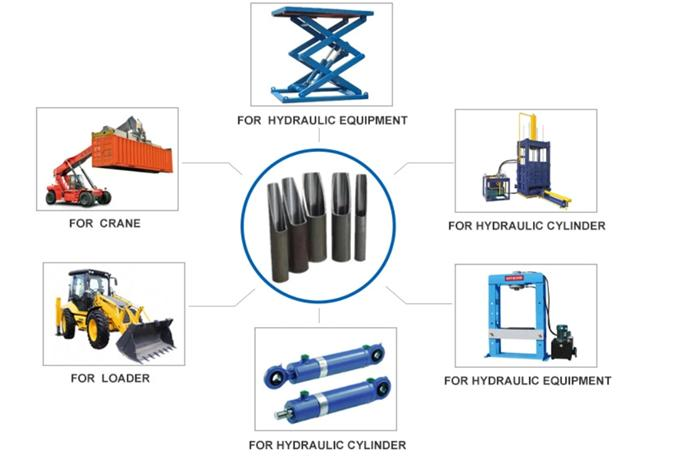

Production Application
Packing and delivery
1. Small OD: In hexagonal bundle with steel strips
2. Large OD: In bulk
3. Wrapped in waterproof plastic woven bag
4. Filled in wooden cases
5. As required
Delivery Detail: Shipped in 7-15 days afterreceived the balance payment
FAQ
1. Q: Are you trading company or Manufactuer?
A: Of course, we are manufactuer. We are in field of honed tube and chrome rod more than 17+years.
2. Q: What is your delivery time?
A: As normally, it is 30-45 days after you confirm the order.
3. Q:What is your main payment term?
A: They are T/T and L/C. Like 30% advance payment via T/T, balance pay after receive copy BL
Please contact :
Ginger
Mob. & WhatsApp: +86 13336363960
Email: ginger@dhonedtube.com
