Piston Rod Chrome Bar And Chrome Plated Rod Suppiler
Company description:
Our company mainly produces various specifications hydraulic cylinder tube and chrome steel rod. which are widely used in hydraulic and Pneumatic cylinder for automobile,engineering machinery, textile machinery, printing machinery, oil drilling and other field.
Hard Chrome Plated Hydraulic Cylinder Piston Rod
Size: | OD: 40-320mm ID :30-280mm |
Length: | 1m -9m |
Material: | CK45/ ST52/ 20MnV6/ 42CrMo4/ 40Cr/ bearing steel/ stainless steel |
Tolerance | ISO f7 |
Chrome thickness: | 20~30micron |
Hardness of the chrome layer: | 800HV (min) |
Roughness: | Ra 0.2micron (max) |
Straightness: | 0.2/1000mm |
Yield Strength | ≥350 M p a |
Tensile Strength | ≥580 M p a |
Elongation | ≥ 15% |
Supply condition: | 1.Hard chrome plated |
2.Induction hardened | |
3.Quenched & Tempered | |
4.Induction hardened with Q&T |
Technical Specification
Product Name | Hard chrome plated Hydraulic cylinder piston rod | ||
Diameters | 6-300mm | ||
Length | 100mm-1200mm | ||
| DIN CK45 | ||
Tolerance | ISO f7 | ||
Chrome thickness | 20μm(min) | ||
Hardness of the chrome layer | 850H V(min) | ||
Roughness | Ra 0.2μm(max) | ||
Straightness | 0.2/1000mm | ||
| Yield strength≥20Mpa | ||
| 1.Hard chrome plated | ||
2.Induction hardened | |||
3.Quenched & Tempered | |||
4.Induction hardened with Q&T |

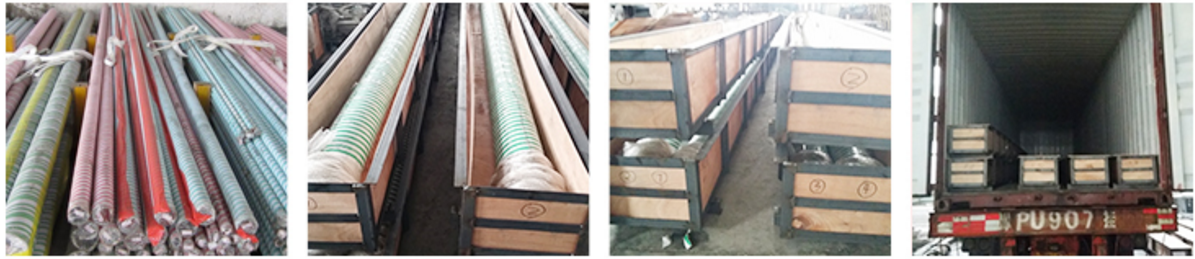

Packing and delivery
Seamless Honed tube Packaging Details:
1. Small OD: In hexagonal bundle with steel strips
2. Large OD: In bulk
3. Wrapped in waterproof plastic woven bag
4. Filled in wooden cases
5. As required
Delivery Detail: Shipped in 7-15 days afterreceived the balance payment
Our Advantages:
Powerful manufacturer, focusing on specialty and quality assurance
1. Strict material selection: high-quality raw materials, good bearing capacity
2. Meticulous workmanship: customized size, accurate cutting, smooth incision
3. Quality assurance: integrity and quality are our service purposes.
4. Large inventory: complete specifications and sufficient stock
5. Timely delivery: Deliver on time and operate with integrity.
6. Mature process: Sophisticated processing equipment, rich technical experience.
Please contact :
Ginger
Mob. & WhatsApp: +86 13336363960
Email: ginger@dhonedtube.com
