Our honed pipe manufacturing process, using mature technology and strict selection of raw materials. Honing tubes are mainly used in the production of pneumatic or hydraulic components of products, such as cylinders or oil cylinders, machining automotive industry, etc.

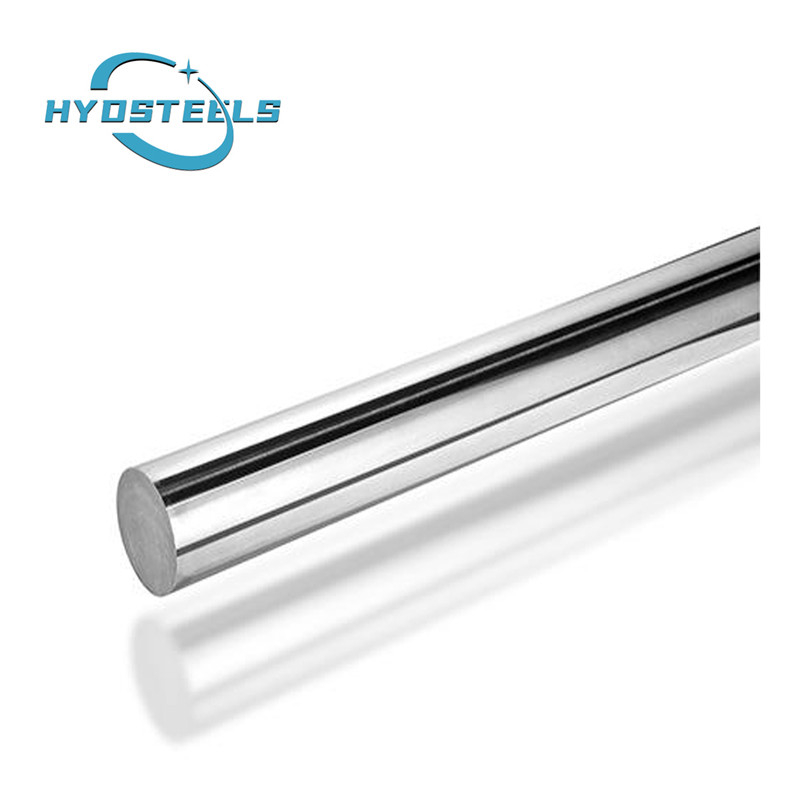

Hard Chrome Plated Piston Rod processed by Hot rolled, Peeled, (Induction hardened), Surface grinded, Hard chrome plated etc.. more than ten processing, made by steel bar in material CK45, 20MnV6, 42CrMo4, SUS304, SUS316 etc..
Parameters of Chrome Rod
| Item | Chrome Rod | |
| Steel Grade | CK45, SAE1045, 4140, JIS45C, 40Cr, 20MnV6, 42CrMo4, SS431, SS430, Stainless Steel 304/316/2205, etc. | |
| Diameter | Φ 6-500mm | |
| Tolerance | ISO f7 | |
| Roughness | max. Ra0.20µm (statistic average: 0.05 - 0.15µm) | |
| Roundness | Half of the tolerance ISO f7 | |
| Length | 4000mm, 5800mm, 6000mm, 7500mm can be choice | |
| Straightness | <= 0.2/1000 | |
| Technology | Test in natural salt spray according to ASTM B 17-96/120/150/200 hours. | |
| Packing | Anti-rust oil coated, sheathe by paper board pipe, Cotton rope twined, Woven bag packaged. | |
Professional manufacturer of honed tube/pipe & chrome rod, founded in 2004, one of biggest manufacturer in China.
Factory was established under modern management system and technologies. The equipment covered the whole processing. It covers an area of 40,000 sq. meters and building area of 30,000 sq. meters.
All processing control include cold-drawn, heat treatment, honing, peeling, grinding, polishing. There are 50sets of advanced equipment and80+ skilled technical workers, annual output over 30,000 tons.
