Hard Piston Cylinder Rod Hollow Piston Rod Hydraulic Cylinder Hardened Round Bar Manufacturer

Professional manufacturer of Honed tube & chrome rod, founded in 2004, one of biggest manufacturer in China. Rich experience in production and export, prefect products & services gained recognition of clients from 40 countries.

Our piston rod manufacturing process, using mature technology and strict selection of raw materials. Piston rod is mainly used in the production of pneumatic or hydraulic components of products, such as cylinders or cylinders, mechanical processing automotive industry, etc.

Accuracy grade f7 tolerance, surface hardness ≥HV900. Chrome layer thickness 20-50 microns optional, salt spray test 60-90 hours. Induction quenching hardness HRC55±2, quenching depth 0.5-3.5mm optional.

Product Description
chrome rod(6)

Parameters of Chrome Rod


Chrome Rod

Steel Grade CK45, SAE1045, 4140, JIS45C, 40Cr, 20MnV6, 42CrMo4, SS431, SS430, Stainless Steel 304/316/2205, etc.
Diameter Φ 6-500mm
Tolerance ISO f7
Roughness max. Ra0.20µm (statistic average: 0.05 - 0.15µm)
Roundness Half of the tolerance ISO f7
Length 4000mm, 5800mm, 6000mm, 7500mm can be choice
Straightness <= 0.2/1000
Technology Test in natural salt spray according to ASTM B 17-96/120/150/200 hours.

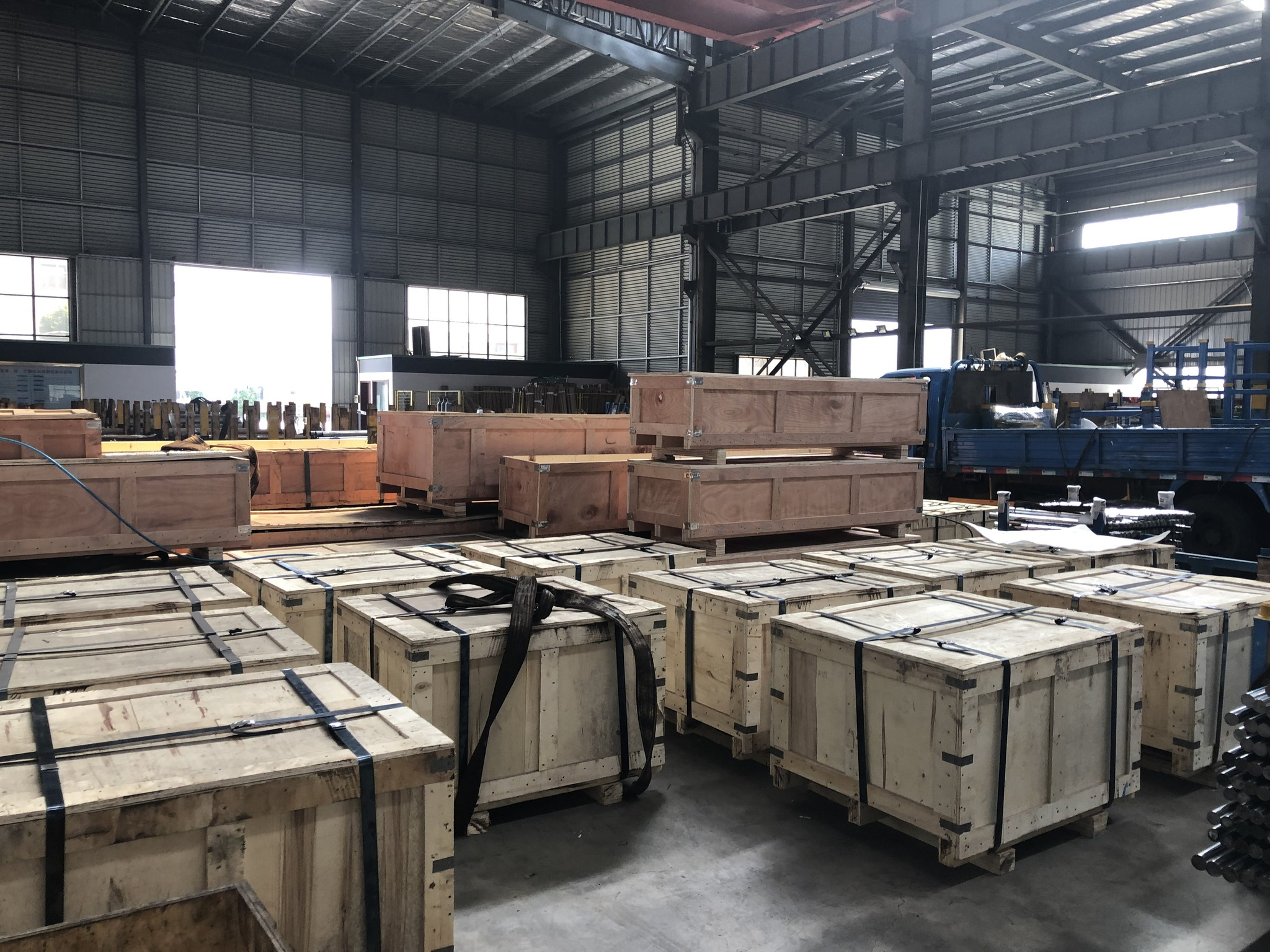

Packing Anti-rust oil coated, sheathe by paper board pipe, Cotton rope twined, Woven bag packaged.
Manufacturing Process of Chrome Rod


Why Choice Us

1. Ensure the quality of materials.

2. It has advanced production equipment for the whole process.

3. One-stop collection of honing tubes, chrome rods, and casting cylinder components.

4. Complete specifications, complete materials, available at any time, fast delivery.

5. Customizable, non-standard size.

6. Small amounts are acceptable.

7. If there is any quality problem, please refund or replace.



Q: Are you a manufacturer?

A: Yes! We are a professional honing tube manufacturer.

Q: How can I get the price?

A: We usually quote within 24 hours after we get your inquiry by telling us the material, out diameter, wall thickness, quantity and application of the steel pipe which you need.

Q: What is your terms of payment?

A: T/T or L/C according to real order.

Q: How long is your delivery time?

A: It's usually about 30 days. At the same time, urgent order could also be arranged about 7 days.
