Description

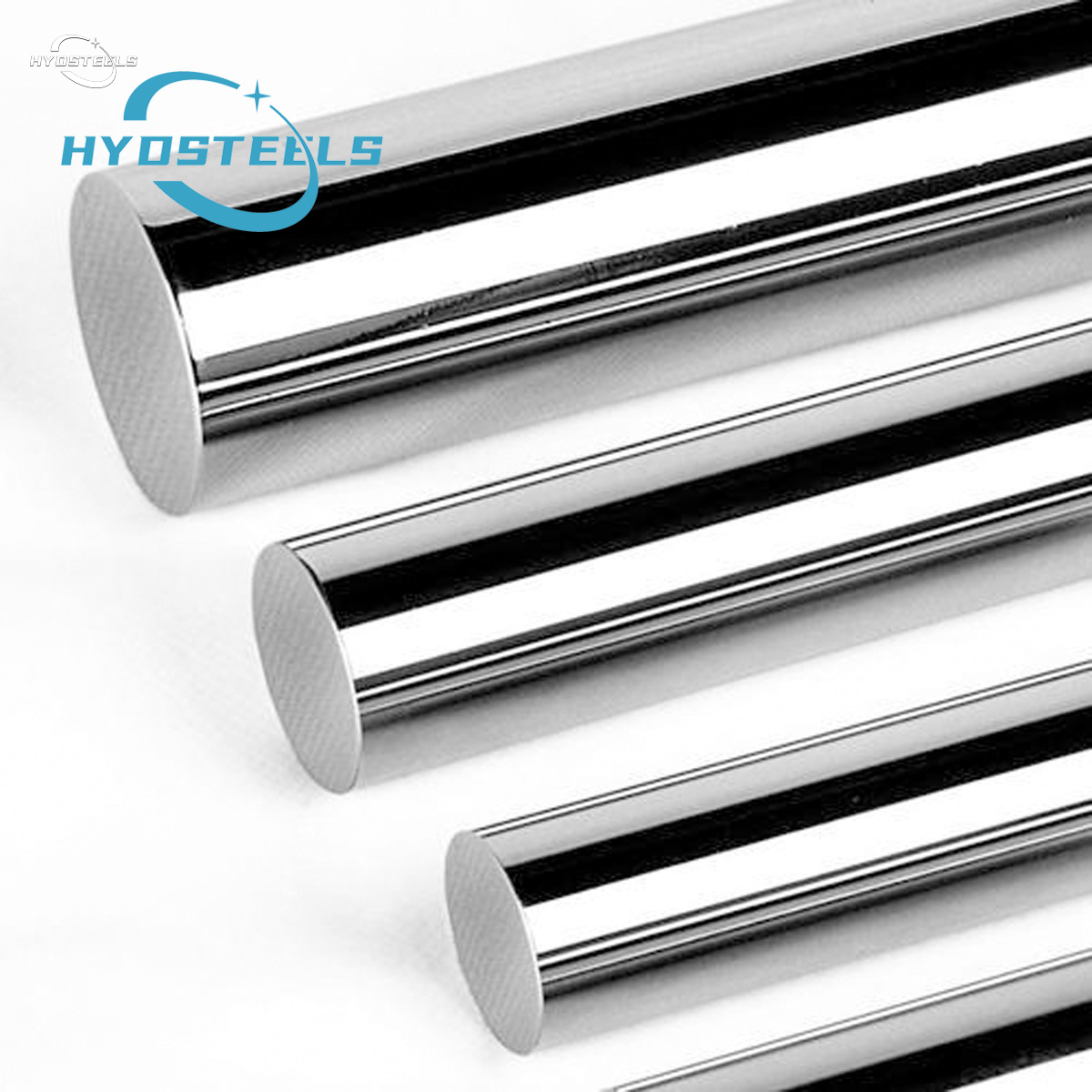

Ck45 Hard Chrome Plated Piston Rod for Hydraulic Cylinder Manufacturer processed by more than ten processing, made by steel bar in material CK45, 20MnV6, 42CrMo4, SUS304, SUS316 etc.. Dia. Precision level of f7 tolerance, surface hardness min. HV900.
Chrome layer thickness 20-50micron can be choice, Salt spray test 60-90hours.
Induction hardened hardness HRC55±2, hardened depth 0.5-3.5mm can be choice.
CK45 Hard Chrome Rod Chromed Piston Rod
| Steel Grade | C45E (EN 10083) |
| Tolerance | ISO f7 |
| Length | 4000mm, 5800mm, 6000mm, 7500mm can be choice |
| Roughness | max. Ra0.20µm (statistic average: 0.05 - 0.15µm) |
| Hardness | HRC 15-25, HRC 20-30 (Based on different heat treatment) |
| Chrome Thickness | 20-50µm can be choice |
| Chrome Hardness | min. 900 HV (0.1) |
| Straightness | <=Ø16 mm: max. 0.3 mm : 1000 mm > Ø16 mm: max. 0.2 mm : 1000 mm |
| Mechanical Properties | According to EN 10083-2 |
CK45 Induction Hardened Chrome Rod
| Steel Grade | C45E (EN 10083) |
| Tolerance | ISO f7 |
| Length | 4000mm, 5800mm, 6000mm, 7500mm can be choice |
| Roughness | max. Ra0.20µm (statistic average: 0.05 - 0.15µm) |
| Hardness | HRC 55+/-2 |
| Hardened Depth | 0.3-3.5mm can be choice |
| Chrome Thickness | 20-50µm can be choice |
| Chrome Hardness | min. 900 HV (0.1) |
| Straightness | <=Ø16 mm: max. 0.3 mm : 1000 mm > Ø16 mm: max. 0.2 mm : 1000 mm |
| Mechanical Properties | According to EN 10083-2 |
Packing and Delivery Ck45 Hard Chrome Plated Piston Rod for Hydraulic Cylinder Manufacturer
Equipment Show
As one of the biggest honed tube piston rod manufacturers in China, we equipped with advanced production facilities and inspection facilities for honed pipe manufacturing and inspection. Below manufacturing machines for steel honed tubing and chrome plated hard bar
We sincerely hope there would be a chance for us to start business and build long term relationships may from an inquiry soon.
Ck45 Hard Chrome Plated Piston Rod for Hydraulic Cylinder Manufacturer
