Description
42CrMo4 SAE 4140 AISI 4140 Hard Chrome Plated Alloy Steel Rod for Hydraulic Cylinder
Hard chrome piston rods processed by more than ten processing, made by steel bar in material CK45, 20MnV6, 42CrMo4, SUS304, SUS316 etc.. Dia. Precision level of f7 tolerance, surface hardness min. HV900.
Chrome layer thickness 20-50micron can be choice, Salt spray test 60-90hours.
Induction hardened hardness HRC55±2, hardened depth 0.5-3.5mm can be choice.
>Equipment cover all production processing with stick QC system make better quality and keep improve.
>Huge material purchasing reduce production cost and final rate.
>Rich stock for normal size, order could be fast delivery in 7days.
>100% inspection and one-year quality guarantee to avoid any risk choice us.
CK45 Hard Chrome Rod
Steel Grade | C45E (EN 10083) |
Tolerance | ISO f7 |
Length | 4000mm, 5800mm, 6000mm, 7500mm can be choice |
Roughness | max. Ra0.20µm (statistic average: 0.05 - 0.15µm) |
Hardness | HRC 15-25, HRC 20-30 (Based on different heat treatment) |
Chrome Thickness | 20-50µm can be choice |
Chrome Hardness | min. 900 HV (0.1) |
Straightness | <=Ø16 mm: max. 0.3 mm : 1000 mm > Ø16 mm: max. 0.2 mm : 1000 mm |
Mechanical Properties | According to EN 10083-2 |
CK45 Induction Hardened Chrome Rod
Steel Grade | C45E (EN 10083) |
Tolerance | ISO f7 |
Length | 4000mm, 5800mm, 6000mm, 7500mm can be choice |
Roughness | max. Ra0.20µm (statistic average: 0.05 - 0.15µm) |
Hardness | HRC 55+/-2 |
Hardened Depth | 0.3-3.5mm can be choice |
Chrome Thickness | 20-50µm can be choice |
Chrome Hardness | min. 900 HV (0.1) |
Straightness | <=Ø16 mm: max. 0.3 mm : 1000 mm > Ø16 mm: max. 0.2 mm : 1000 mm |
Mechanical Properties | According to EN 10083-2 |
Quality Inspection and Testing

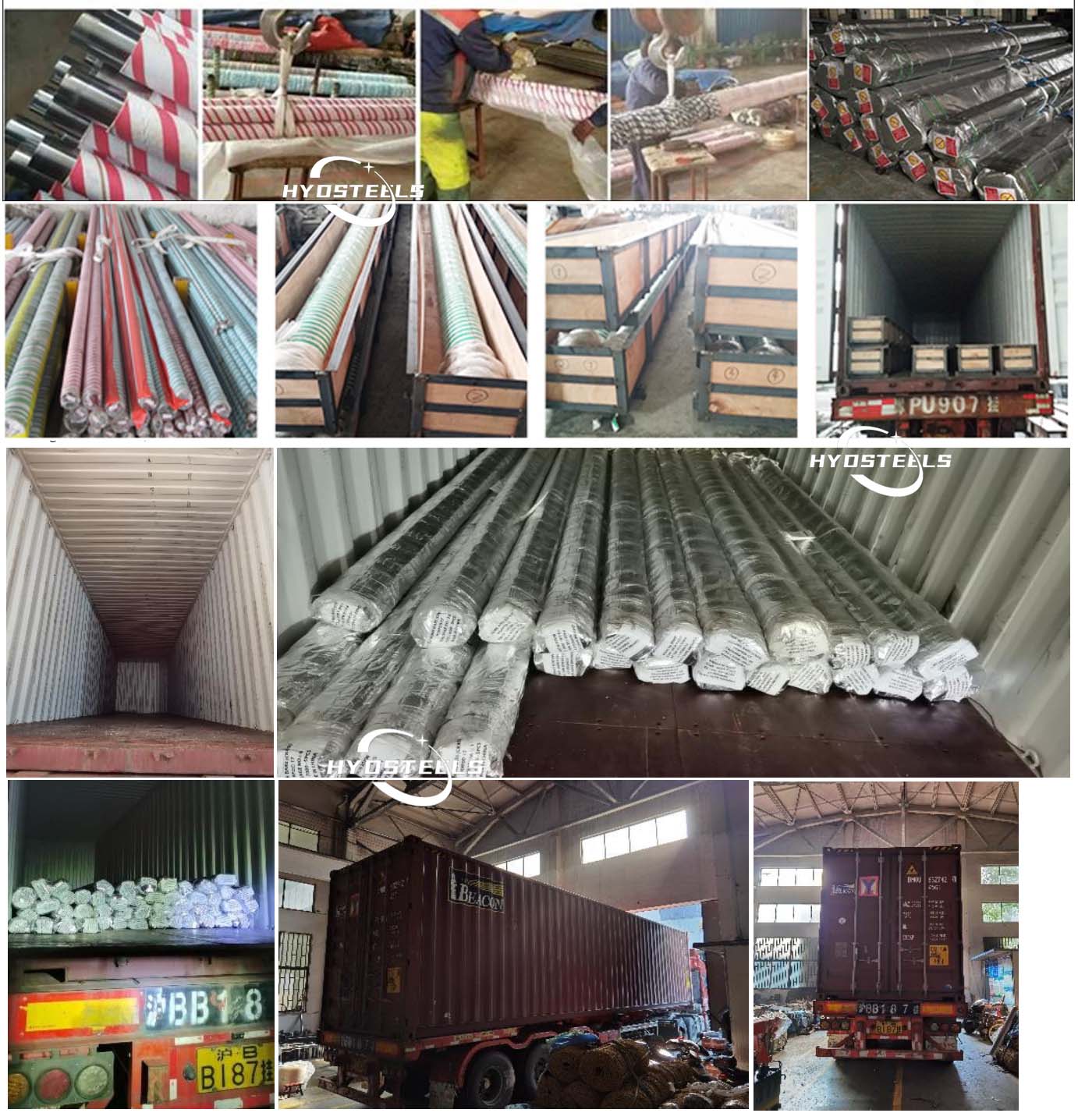

Packing and Delivery
Equipment Show
As one of the biggest honed tube piston rod manufacturers in China, we equipped with advanced production facilities and inspection facilities for honed pipe manufacturing and inspection. Below manufacturing machines for steel honed tubing and chrome plated hard bar
1. Description: We can supply hard chrome plated rods, solid piston rods, and hollow piston rods.
2. Commodity: 42CrMo4 hard chrome plated rods
3. Available steel gardes:
SAE/AISI | 1020,1026,1045,1518,4130,4140 |
EN | C45E, E355,25CrMo4,42CrMo4,CK45,S45C |
DIN | ST52 |
4. Machining&turning:as per drawings.
5. Hard chrome plating: thickness and hardness as per requirement.
6. Diameter tolerance: ISO f7.
7. Surface roughness: Ra0.25um max or Ra0.4um max at the option of the buyer.
8. Standard export packing: By plywood boxes
9. Customized packing or marking are available upon request.
Applications:
Linear Motion Guides, Hydraulic cylinder rods
plastic injection molding machines, construction equipment, rubber molding machines, papermaking machines, printing machines, refrigeration equipment, foods and chemical machinery, loading equipment, fiber spinning equipment, textile machinery, agricultural equipment, automotives, shipbuilding and the like.
We sincerely hope there would be a chance for us to start business and build long term relationships may from an inquiry soon.
42CrMo4 SAE 4140 AISI 4140 Hard Chrome Plated Alloy Steel Rod for Hydraulic Cylinder
Kelly
+8618661285080
exp@dhonedtube.com
https://honedtube.en.made-in-china.com
Description
42CrMo4 SAE 4140 AISI 4140 Hard Chrome Plated Alloy Steel Rod for Hydraulic Cylinder
Hard chrome piston rods processed by more than ten processing, made by steel bar in material CK45, 20MnV6, 42CrMo4, SUS304, SUS316 etc.. Dia. Precision level of f7 tolerance, surface hardness min. HV900.
Chrome layer thickness 20-50micron can be choice, Salt spray test 60-90hours.
Induction hardened hardness HRC55±2, hardened depth 0.5-3.5mm can be choice.
>Equipment cover all production processing with stick QC system make better quality and keep improve.
>Huge material purchasing reduce production cost and final rate.
>Rich stock for normal size, order could be fast delivery in 7days.
>100% inspection and one-year quality guarantee to avoid any risk choice us.
CK45 Hard Chrome Rod
Steel Grade | C45E (EN 10083) |
Tolerance | ISO f7 |
Length | 4000mm, 5800mm, 6000mm, 7500mm can be choice |
Roughness | max. Ra0.20µm (statistic average: 0.05 - 0.15µm) |
Hardness | HRC 15-25, HRC 20-30 (Based on different heat treatment) |
Chrome Thickness | 20-50µm can be choice |
Chrome Hardness | min. 900 HV (0.1) |
Straightness | <=Ø16 mm: max. 0.3 mm : 1000 mm > Ø16 mm: max. 0.2 mm : 1000 mm |
Mechanical Properties | According to EN 10083-2 |
CK45 Induction Hardened Chrome Rod
Steel Grade | C45E (EN 10083) |
Tolerance | ISO f7 |
Length | 4000mm, 5800mm, 6000mm, 7500mm can be choice |
Roughness | max. Ra0.20µm (statistic average: 0.05 - 0.15µm) |
Hardness | HRC 55+/-2 |
Hardened Depth | 0.3-3.5mm can be choice |
Chrome Thickness | 20-50µm can be choice |
Chrome Hardness | min. 900 HV (0.1) |
Straightness | <=Ø16 mm: max. 0.3 mm : 1000 mm > Ø16 mm: max. 0.2 mm : 1000 mm |
Mechanical Properties | According to EN 10083-2 |
Quality Inspection and Testing
Packing and Delivery
Equipment Show
As one of the biggest honed tube piston rod manufacturers in China, we equipped with advanced production facilities and inspection facilities for honed pipe manufacturing and inspection. Below manufacturing machines for steel honed tubing and chrome plated hard bar
1. Description: We can supply hard chrome plated rods, solid piston rods, and hollow piston rods.
2. Commodity: 42CrMo4 hard chrome plated rods
3. Available steel gardes:
SAE/AISI | 1020,1026,1045,1518,4130,4140 |
EN | C45E, E355,25CrMo4,42CrMo4,CK45,S45C |
DIN | ST52 |
4. Machining&turning:as per drawings.
5. Hard chrome plating: thickness and hardness as per requirement.
6. Diameter tolerance: ISO f7.
7. Surface roughness: Ra0.25um max or Ra0.4um max at the option of the buyer.
8. Standard export packing: By plywood boxes
9. Customized packing or marking are available upon request.
Applications:
Linear Motion Guides, Hydraulic cylinder rods
plastic injection molding machines, construction equipment, rubber molding machines, papermaking machines, printing machines, refrigeration equipment, foods and chemical machinery, loading equipment, fiber spinning equipment, textile machinery, agricultural equipment, automotives, shipbuilding and the like.
We sincerely hope there would be a chance for us to start business and build long term relationships may from an inquiry soon.
42CrMo4 SAE 4140 AISI 4140 Hard Chrome Plated Alloy Steel Rod for Hydraulic Cylinder
Kelly
+8618661285080
exp@dhonedtube.com
https://honedtube.en.made-in-china.com
FAQ
Q: Material sourcing
A: Angang, ZENITH, Jiangsu Shagang, Huaigang.
Q: Delivery time?
A: Usually could be delivery in 30 days, urgent order could be delivery in 15days.
Q: Make to drawing?
A: Available
Q: MOQ request?
A: Min. 500kg
Q: What's your main market?
A: We mainly export to Middle East, South Africa and South Eastern Asia. And these two years our products enter to South America too.
Q: Are you factory?
A: Yes, we are.
Q: Payment item option?
A: T/T, L/C, D/P, O/A accept.
Q: Guarantee period?
A: One-year after manufactured, reject items will be resupply or refund.
Q: How to deal with defective products after delivery.
A: Resupply or Refund available.
FAQ
Q: Material sourcing
A: Angang, ZENITH, Jiangsu Shagang, Huaigang.
Q: Delivery time?
A: Usually could be delivery in 30 days, urgent order could be delivery in 15days.
Q: Make to drawing?
A: Available
Q: MOQ request?
A: Min. 500kg
Q: What's your main market?
A: We mainly export to Middle East, South Africa and South Eastern Asia. And these two years our products enter to South America too.
Q: Are you factory?
A: Yes, we are.
Q: Payment item option?
A: T/T, L/C, D/P, O/A accept.
Q: Guarantee period?
A: One-year after manufactured, reject items will be resupply or refund.
Q: How to deal with defective products after delivery.
A: Resupply or Refund available.
Hard Chrome Plated Rod Size
Diameter mm | Weight kg/mtr | Length m | Diameter mm | Weight kg/mtr | Length m | ||
⌀10 | 0.62 | 4 | ⌀50.8 | 15.92 | 6 / 7.5 | ||
⌀12 | 0.89 | 4 | ⌀55 | 18.66 | 6 / 7.5 | ||
⌀12.7 | 1 | 4 | ⌀56 | 19.35 | 6 / 7.5 | ||
⌀14 | 1.21 | 4 | ⌀57.15 | 20.15 | 6 / 7.5 | ||
⌀15 | 1.39 | 4 | ⌀60 | 22.21 | 6 / 7.5 | ||
⌀16 | 1.58 | 4 | ⌀63 | 24.49 | 6 / 7.5 | ||
⌀18 | 2 | 4 | ⌀65 | 26.07 | 6 / 7.5 | ||
⌀18.1 | 2.02 | 4 | ⌀70 | 30.23 | 6 / 7.5 | ||
⌀19 | 2.23 | 4 | ⌀75 | 34.71 | 6 / 7.5 | ||
⌀20 | 2.47 | 4 | ⌀80 | 39.49 | 6 / 7.5 | ||
⌀21.75 | 2.92 | 4 | ⌀85 | 44.58 | 6 / 7.5 | ||
⌀22 | 2.99 | 4 | ⌀90 | 49.98 | 6 / 7.5 | ||
⌀24 | 3.55 | 4 | ⌀95 | 55.68 | 6 / 7.5 | ||
⌀25 | 3.86 | 4 | ⌀100 | 61.7 | 6 / 7.5 | ||
⌀25.4 | 3.98 | 4 | ⌀105 | 68.02 | 6 / 7.5 | ||
⌀28 | 4.84 | 4 | ⌀110 | 74.66 | 6 / 7.5 | ||
⌀30 | 5.55 | 4 | ⌀115 | 81.6 | 6 / 7.5 | ||
⌀31.75 | 6.22 | 4 | ⌀120 | 88.85 | 6 / 7.5 | ||
⌀32 | 6.32 | 4 | ⌀125 | 96.41 | 6 / 7.5 | ||
⌀36 | 8 | 6 / 7.5 | ⌀130 | 104.27 | 6 / 7.5 | ||
⌀38 | 8.91 | 6 / 7.5 | ⌀140 | 120.93 | 6 / 7.5 | ||
⌀40 | 9.87 | 6 / 7.5 | ⌀145 | 129.72 | 6 / 7.5 | ||
⌀42 | 10.88 | 6 / 7.5 | ⌀150 | 138.83 | 6 / 7.5 | ||
⌀44.45 | 12.19 | 6 / 7.5 | ⌀160 | 157.95 | 6 / 7.5 | ||
⌀45 | 12.49 | 6 / 7.5 | ⌀170 | 178.31 | 6 / 7.5 | ||
⌀50 | 15.43 | 6 / 7.5 | ⌀180 | 199.91 | 6 / 7.5 |
Quality Standard:
Material grade: CK45, 42CrMo4, 20MnV6, SUS304/316
Tolerance: ISO f7
Roundness: Dia. tolerance / 2
Roughness: max. Ra 0.20 µm (statistic average: 0.05 - 0.15 µm)
Chrome thickness: Dia. <= Ø 20 mm: min. 15 µm
Dia. > Ø 25 mm: min. 20 µm
Chrome hardness: min. 900 HV
Straightness: Dia. <= Ø 16 mm: max. 0.3 mm/1000mm
Dia. > Ø 16 mm: max. 0.2 mm/1000mm
Hard chrome plated rod, Hard chrome plated round steel bar, Piston rod
Hard Chrome Plated Rod Size
Diameter mm | Weight kg/mtr | Length m | Diameter mm | Weight kg/mtr | Length m | ||
⌀10 | 0.62 | 4 | ⌀50.8 | 15.92 | 6 / 7.5 | ||
⌀12 | 0.89 | 4 | ⌀55 | 18.66 | 6 / 7.5 | ||
⌀12.7 | 1 | 4 | ⌀56 | 19.35 | 6 / 7.5 | ||
⌀14 | 1.21 | 4 | ⌀57.15 | 20.15 | 6 / 7.5 | ||
⌀15 | 1.39 | 4 | ⌀60 | 22.21 | 6 / 7.5 | ||
⌀16 | 1.58 | 4 | ⌀63 | 24.49 | 6 / 7.5 | ||
⌀18 | 2 | 4 | ⌀65 | 26.07 | 6 / 7.5 | ||
⌀18.1 | 2.02 | 4 | ⌀70 | 30.23 | 6 / 7.5 | ||
⌀19 | 2.23 | 4 | ⌀75 | 34.71 | 6 / 7.5 | ||
⌀20 | 2.47 | 4 | ⌀80 | 39.49 | 6 / 7.5 | ||
⌀21.75 | 2.92 | 4 | ⌀85 | 44.58 | 6 / 7.5 | ||
⌀22 | 2.99 | 4 | ⌀90 | 49.98 | 6 / 7.5 | ||
⌀24 | 3.55 | 4 | ⌀95 | 55.68 | 6 / 7.5 | ||
⌀25 | 3.86 | 4 | ⌀100 | 61.7 | 6 / 7.5 | ||
⌀25.4 | 3.98 | 4 | ⌀105 | 68.02 | 6 / 7.5 | ||
⌀28 | 4.84 | 4 | ⌀110 | 74.66 | 6 / 7.5 | ||
⌀30 | 5.55 | 4 | ⌀115 | 81.6 | 6 / 7.5 | ||
⌀31.75 | 6.22 | 4 | ⌀120 | 88.85 | 6 / 7.5 | ||
⌀32 | 6.32 | 4 | ⌀125 | 96.41 | 6 / 7.5 | ||
⌀36 | 8 | 6 / 7.5 | ⌀130 | 104.27 | 6 / 7.5 | ||
⌀38 | 8.91 | 6 / 7.5 | ⌀140 | 120.93 | 6 / 7.5 | ||
⌀40 | 9.87 | 6 / 7.5 | ⌀145 | 129.72 | 6 / 7.5 | ||
⌀42 | 10.88 | 6 / 7.5 | ⌀150 | 138.83 | 6 / 7.5 | ||
⌀44.45 | 12.19 | 6 / 7.5 | ⌀160 | 157.95 | 6 / 7.5 | ||
⌀45 | 12.49 | 6 / 7.5 | ⌀170 | 178.31 | 6 / 7.5 | ||
⌀50 | 15.43 | 6 / 7.5 | ⌀180 | 199.91 | 6 / 7.5 |
Quality Standard:
Material grade: CK45, 42CrMo4, 20MnV6, SUS304/316
Tolerance: ISO f7
Roundness: Dia. tolerance / 2
Roughness: max. Ra 0.20 µm (statistic average: 0.05 - 0.15 µm)
Chrome thickness: Dia. <= Ø 20 mm: min. 15 µm
Dia. > Ø 25 mm: min. 20 µm
Chrome hardness: min. 900 HV
Straightness: Dia. <= Ø 16 mm: max. 0.3 mm/1000mm
Dia. > Ø 16 mm: max. 0.2 mm/1000mm
Hard chrome plated rod, Hard chrome plated round steel bar, Piston rod
Professional manufacturer of Honed tube, chrome rod, founded in 2004, operation under modern management system and technologies, ISO9001 certificated, It covers an area of 40, 000 sq. Meters.
All processing controled and owned fully production facilities, also owned cold-drawn machine and heat treatment furnace.
As one of the biggest honed tube, chrome rod manufacturer we engrossed in this field 15+ years, Rich experience in production and export, prefect products & services gained recognition of clients from 40 countries.
Company Show
Major in Honed tube, Chrome rod, Cylinder parts, 15+ years' experience. Factory was established under modern management system and technologies in 2003. It covers an area of 40,000 sq. meters, all processing control include cold-drawn, heat treatment, honing, peeling, grinding, polishing. There 're 60+ sets of advanced equipment and 70+ skilled technical workers, annual output over 20,000 tons.
Our Services
<Could make product for customer according to customer samples or drawings
<Submit samples with official inspection reports including material report, mechanical property report and dimensional report
<Can provide the third party inspection report
<Could provide at least one year's quality guarantee after customer receives the products
<We could supply storage service for customer if required.
Why Choice Us
1.Professional, rich experience, reliable.
2.One-stop collection for honed tube, chrome rod, casting cylinder components.
3.Full range of size and material, ready stock goods with fast delivery
4.Customizable, non-standard sizes available
5.Small quantity acceptable
6.Refund or replace if any quality issue.
Kelly
+8618661285080
exp@dhonedtube.com
https://honedtube.en.made-in-china.com
Professional manufacturer of Honed tube, chrome rod, founded in 2004, operation under modern management system and technologies, ISO9001 certificated, It covers an area of 40, 000 sq. Meters.
All processing controled and owned fully production facilities, also owned cold-drawn machine and heat treatment furnace.
As one of the biggest honed tube, chrome rod manufacturer we engrossed in this field 15+ years, Rich experience in production and export, prefect products & services gained recognition of clients from 40 countries.
Company Show
Major in Honed tube, Chrome rod, Cylinder parts, 15+ years' experience. Factory was established under modern management system and technologies in 2003. It covers an area of 40,000 sq. meters, all processing control include cold-drawn, heat treatment, honing, peeling, grinding, polishing. There 're 60+ sets of advanced equipment and 70+ skilled technical workers, annual output over 20,000 tons.
Our Services
<Could make product for customer according to customer samples or drawings
<Submit samples with official inspection reports including material report, mechanical property report and dimensional report
<Can provide the third party inspection report
<Could provide at least one year's quality guarantee after customer receives the products
<We could supply storage service for customer if required.
Why Choice Us
1.Professional, rich experience, reliable.
2.One-stop collection for honed tube, chrome rod, casting cylinder components.
3.Full range of size and material, ready stock goods with fast delivery
4.Customizable, non-standard sizes available
5.Small quantity acceptable
6.Refund or replace if any quality issue.
Kelly
+8618661285080
exp@dhonedtube.com
https://honedtube.en.made-in-china.com
