honed tube
HYDSTEELS
730439900
| Quantity: | |
|---|---|

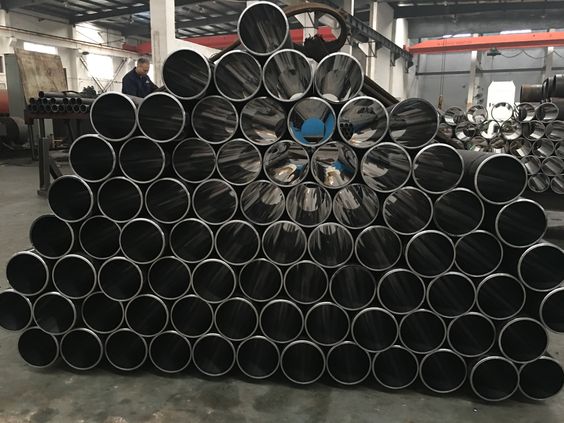

Honed Tube is well known as hydraulic cylinder tube in industries. Honed Tubes, Skived & Roller Burnished Tubes are the most important material of manufacturing hydraulic cylinders.
As one of the leading hydraulic cylinder honing tubes suppliers and manufacturers, dooharvest has been supplying and exporting honed steel tube 15+years.
OUR MAIN PRODUCTS:
Honed Tube
Skived & Roller Burnished Tube
Chrome Plated Tube;
Welded Hydraulic Cylinder Barrel
Large size honed bore tube
Standard Honed Tube
Customized Honed Tube
Cold-drawn Seamless Steel pipe/tube
Pre Honed Tubes (Ready-to-honed Tube)
Piston Rod
Hard Chrome Plated Rod
Hollow chrome rod
Hard chrome plating round steel bars
Chrome Stock
Cylinder parts: Gland, Piston, Cylinder cap etc..
Material: ST52, E355, STKM13C, C20, CK45, 4140, 42CrMo, Stainless Steel 304, 316,
Delivery Condition: BK, BK+S, GBK, NBK
ID Size : 20mm – 1500mm
Length: max 16m
Type: Seamless, Hot Rolled, Cold Rolled, Cold Drawn
Straightness: ≤ 0.5/1000
Roughness: 0.2-0.4 um
Standard: DIN2391, EN10305.
ID Tolerance: H7,H8,H9
Protection: Anti-rust oil on inside and outside surface, plastic caps in both ends.
Our advantage:
1. High precision tolerances: Honed Tube, ID roughness 02-0.4 um, straightness max 0.5/1000, strict tolerance DIN2391 H8. Ovality max. 1/2 ID tolerance. Skived & Roller Burnished Tube, ID roughness under 0.2 um, straightness max 0.2/1000, strict tolerance DIN2391 H8. Ovality max. 1/2 ID tolerance.
2. High quality raw material: Our raw material mainly from some famous steel mills, such as TPCO, BAO STEEL, SHA STEEL, which are best and largest raw material manufacturer in China.
3. High pressure resistance: Choose better raw material seamless tube, after cold drawn the columnar crystals fined to fibrous crystals, which resulted in remarkable work hardening and more uniform material.That make our honed tubing could working stable in higher pressure, our honed tube more reliable for hydraulic cylinder manufacturing.
4. High surface perfection: ID Roughness of our honed pipe is Max Ra0.4.
5. High welding performance: Better weldablility material choose, Strict heat treatment process make our honed tubing with better weldability, It's much helpful for make hydraulic cylinder.
6. Strict Quality control: Full production flow under control and 100% inspection for each product in each processing.
7. Better after sales service: Any quality problem come after delivery, issue items will be resupply or refund. We have confidence in our products and never compromise in material or quality.
We sincerely hope there would be a chance for us to start business and build long term relationships may from an inquiry. please feel freely contact
Cathy
Email: cathy@dhonedtube.com
Tel:+8615763006991
