ST52 BKs Honed Tubes for Hydraulic Cylinder tube China Suppliers

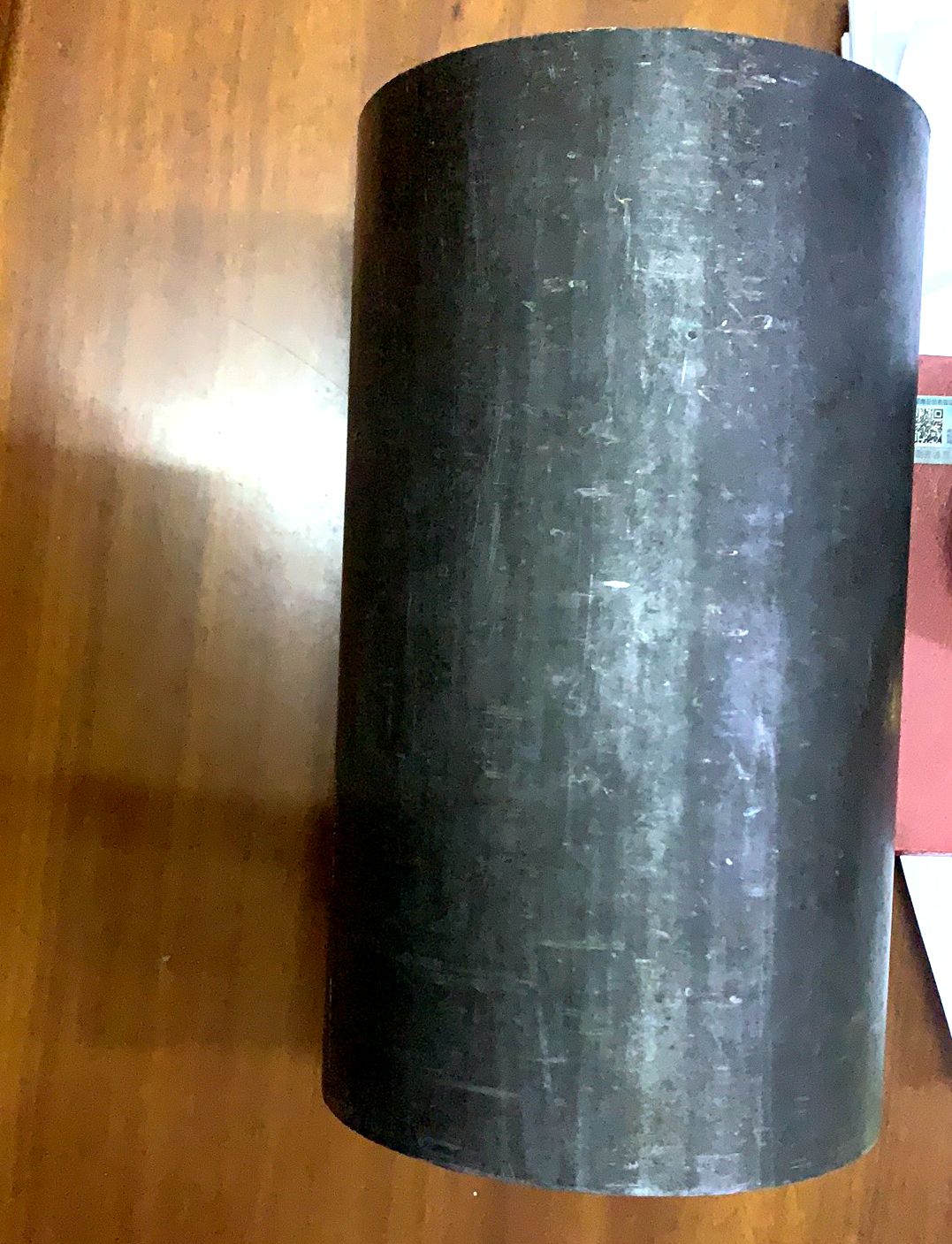

Honed Tube is well known as hydraulic cylinder tube in industries.We produce honed steel tubes and skived roller burnished tubes used for hydraulic cylinder or pneumatic cylinder with high quality with better prices.
As one of big hydraulic cylinder honing tubes manufacturers, dooharvest has been supplying and exporting honed tubes and chrome plated rod for 15+years.
our products are widely exported to more than 40 countries, like Middle east, Southeast Asia, South Africa, India, Bulgaria etc.
OUR MAIN PRODUCTS:
Honed Tube
Skived & Roller Burnished Tube
Chrome Plated Tube;
Welded Hydraulic Cylinder Barrel
Large size honed bore tube
Standard Honed Tube
Customized Honed Tube
Cold-drawn Seamless Steel pipe/tube
Pre Honed Tubes (Ready-to-honed Tube)
Material: ST52, E355, STKM13C, C20, CK45, 4140, 42CrMo, Stainless Steel 304, 316,
Delivery Condition: BK, BK+S, GBK, NBK
ID Size : 20mm – 1500mm
Length: max 16m
Type: Seamless, Hot Rolled, Cold Rolled, Cold Drawn
Straightness: ≤ 0.5/1000
Roughness: 0.2-0.4 um
Standard: DIN2391, EN10305.
ID Tolerance: H8,
Protection: Anti-rust oil on inside and outside surface, plastic caps in both ends.
Inner Diameter | Out Diameter | Wall thickness | Length |
mm | mm | mm | m |
| 32 | 40 | 4 | 4 |
| 35 | 45 | 5 | 4 |
| 40 | 50 | 5 | 4 |
| 50 | 60 | 5 | 4 |
| 55 | 65 | 5 | 6 |
| 60 | 70 | 5 | 6 |
| 60 | 75 | 7.5 | 6 |
| 60 | 80 | 10 | 6 |
| 63 | 75 | 6 | 6 |
| 63 | 78 | 7.5 | 6 |
| 65 | 75 | 5 | 6 |
| 65 | 80 | 7.5 | 6 |
| 70 | 80 | 5 | 6 |
| 70 | 85 | 7.5 | 6 |
| 70 | 90 | 10 | 6 |
| 75 | 90 | 7.5 | 6 |
| 75 | 95 | 10 | 6 |
| 80 | 90 | 5 | 6 |
| 80 | 95 | 7.5 | 6 |
| 80 | 100 | 10 | 6 |
| 85 | 100 | 7.5 | 6 |
| 90 | 105 | 7.5 | 6 |
| 100 | 115 | 7.5 | 6 |
| 100 | 120 | 10 | 6 |
| 100 | 125 | 12.5 | 6 |
| 110 | 125 | 7.5 | 6 |
| 110 | 130 | 10 | 6 |
| 115 | 130 | 7.5 | 6 |
| 120 | 140 | 10 | 6 |
| 120 | 145 | 12.5 | 6 |
| 120 | 150 | 15 | 6 |
| 125 | 145 | 10 | 6 |
| 125 | 150 | 12.5 | 6 |
| 130 | 150 | 10 | 6 |
| 140 | 160 | 10 | 6 |
| 140 | 165 | 12.5 | 6 |
| 140 | 170 | 15 | 6 |
| 145 | 170 | 12.5 | 6 |
| 145 | 175 | 15 | 6 |
| 150 | 170 | 10 | 6 |
| 150 | 180 | 15 | 6 |
| 160 | 180 | 10 | 6 |
| 160 | 185 | 12.5 | 6 |
| 160 | 190 | 15 | 6 |
| 160 | 200 | 20 | 6 |
| 180 | 200 | 10 | 6 |
| 180 | 210 | 15 | 6 |
| 180 | 220 | 20 | 6 |
| 200 | 220 | 10 | 6 |
| 200 | 230 | 15 | 6 |
| 200 | 245 | 22.5 | 6 |
| 250 | 300 | 25 | 6 |
ST52 BKs Honed Tubes for Hydraulic Cylinder tube China Suppliers
We sincerely hope there would be a chance for us to start business and build long term relationships may from an inquiry. please feel freely contact
Cathy
Email: cathy@dhonedtube.com
Tel/whatsApp:+8615763006991
Wechat: cathy15763006991
