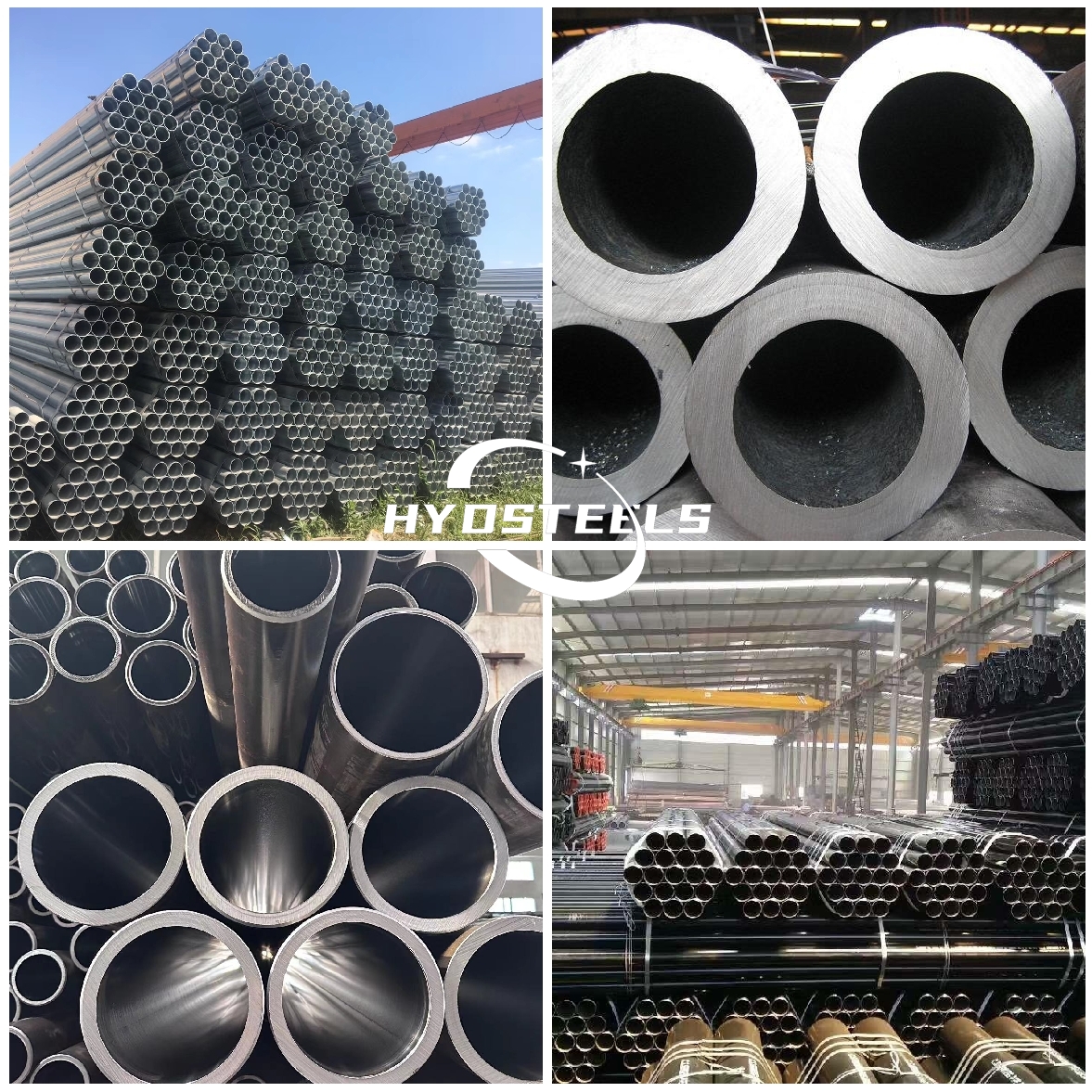

Our honed pipe manufacturing process, using mature technology and strict selection of raw materials. Honing tubes are mainly used in the production of pneumatic or hydraulic components of products, such as cylinders or oil cylinders, machining automotive industry, etc.
| Item | Honed Tube | |
| Standard | DIN2391, EN10305, JIS G3445, ASTM A519, GB/T 8713... | |
| Material | ST45, ST52, E355, E355SR, STKM13C, SAE1026, 20#, Q235B, CK45... | |
| Heat treatment | BK+S | |
| Specification | Outer diameter(mm) | Inner diameter(mm) |
| 40-480mm | 30-400mm | |
| Thickness | 5-40mm | |
| Length | 7000mm | |
| Straightness | Max 0.5/1000mm | |
| Technology | Honed & SRB (SKIVED AND ROLLER BURNISHED) | |
| Tolerance INT | DIN2391 H8 | |
Professional manufacturer of honed tube/pipe & chrome rod, founded in 2004, one of biggest manufacturer in China.
Factory was established under modern management system and technologies. The equipment covered the whole processing. It covers an area of 40,000 sq. meters and building area of 30,000 sq. meters.
All processing control include cold-drawn, heat treatment, honing, peeling, grinding, polishing. There are 50sets of advanced equipment and80+ skilled technical workers, annual output over 30,000 tons.
A: Yes! We are a professional honing tube manufacturer.
A: We usually quote within 24 hours after we get your inquiry by telling us the material, out diameter, wall thickness, quantity and application of the steel pipe which you need.
A: T/T or L/C according to real order.
A: It's usually about 30 days. At the same time, urgent order could also be arranged about 7 days.
