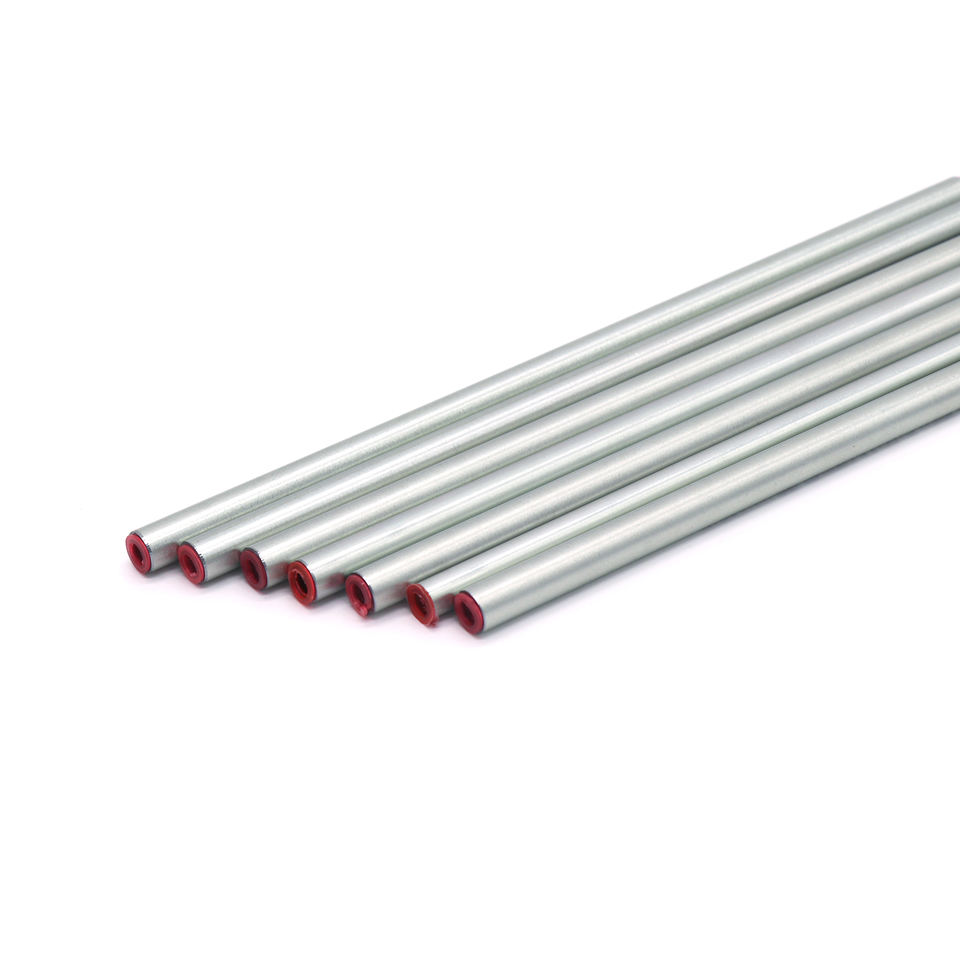

5mm 7mm 9mm 11mm 13mm Galvanized Hydraulic Seamless Steel Pipe Tube
QINGZHOU DOOHARVEST INTERNATIONAL CO., LTD. develops and produces the high quality seamless steel tubes. As one of the leading manufacturers in China, confirming to DIN2391/C, EN10305 and SAE J524 standard. We develops customized tubes solutions for Automotive, engineering machinery, railway locomotive, ships and hydraulic systems, etc.
We focus on R & D and keep improving the quality of our tube, selects the high quality steel billet which have good chemnical composition and mechanical properties. Including elongation, tensile strength, high pressure resistance should meet the requirements. When the production of manufacturing, every process is strictly controlled and tested to insure quality. Our products benefit from very good bending and forming properties, and stand out through good adhesion and high ductility.
Specification
Chemical Composition
| Steel grade | C max. | Si max. | Mn max. | P max. | S max. | Altot min. | |
| Name | Number | ||||||
| E215 | 1.0212 | 0.10 | 0.05 | 0.7 | 0.025 | 0.015 | 0.025 |
| E235 | 1.0308 | 0.17 | 0.35 | 1.2 | 0.025 | 0.015 | -- |
| E355 | 1.0580 | 0.22 | 0.55 | 1.6 | 0.025 | 0.015 | -- |
Mechanical Properties
| Steel grade | Yield strengtha | Tensile strength | Elongation | |
| Name | Number | ReH | Rm | A |
| min. | min. | min. | ||
| MPa | MPa | % | ||
| E215 | 1.0212 | 215 | 290 to 430 | 30 |
| E235 | 1.0308 | 235 | 340 to 480 | 25 |
| E355 | 1.0580 | 355 | 490 to 630 | 22 |
Delivery Condition
| Designation | Symbol | Description |
| Cold finished (hard) | BK(+C) | Tubes do not undergo heat treatment following the final cold forming and, thus, have a rather high resistance to deformation |
| Cold finished (Soft) | BKW (+LC) | The final heat treatment is followed by cold drawing involving limited deformation. Appropriate further processing allows a certain degree of cold forming (e.g. bending, expanding) |
| Cold finished and stress-relieved | BKS(+SR) | Heat treatment is applied following the last cold forming process. Subject to appropriate processing conditions, the increase in the residual stresses involved enables both forming and machining to a certain degree. |
| Annealed | GBK(+A) | The last Cold forming process is followed by annealing in a controlled atmosphere. |
| Normalized | NBK(+N) | The last cold forming process is followed by annealing above the upper transformation point in a controlled atmosphere. |
Quality assurance
1.Strictly according to DIN2391/EN10305
2.Sample: Sample is free for test.
3.Test:salt spray test/tensile test / Eddy current / chemical composition test according to customers' request.
Our services
1. MOQ: if the size is Metric, it's no MOQ, if the size is Inch, the MOQ is 1 ton per size
2. OEM: we can produce the tubes as client's demand
3. Good Quality: we strictly control every production process to ensure the high quality
4. After-sales service: we not only guarantee the precision tubes'
quality but also provide technical support
5. Fast delivery: if we have precision tubes in stock, will deliver the tubes after 5-15 days.
If we don't have the raw material, will deliver the tubes after 30-40 days according to the quantity.
Contact
Ms. Carter
Whatsapp:+86 157 6249 1265
Email: carter@dhonedtube.com
