Description
Hard chrome piston rods processed by more than ten processing, made by steel bar in material CK45, 20MnV6, 42CrMo4, SUS304, SUS316 etc.. Dia. Precision level of f7 tolerance, surface hardness min. HV900.
Chrome layer thickness 20-50micron can be choice, Salt spray test 60-90hours.
Induction hardened hardness HRC55±2, hardened depth 0.5-3.5mm can be choice.
>Equipment cover all production processing with stick QC system make better quality and keep improve.
>Huge material purchasing reduce production cost and final rate.
>Rich stock for normal size, order could be fast delivery in 7days.
>100% inspection and one-year quality guarantee to avoid any risk choice us.

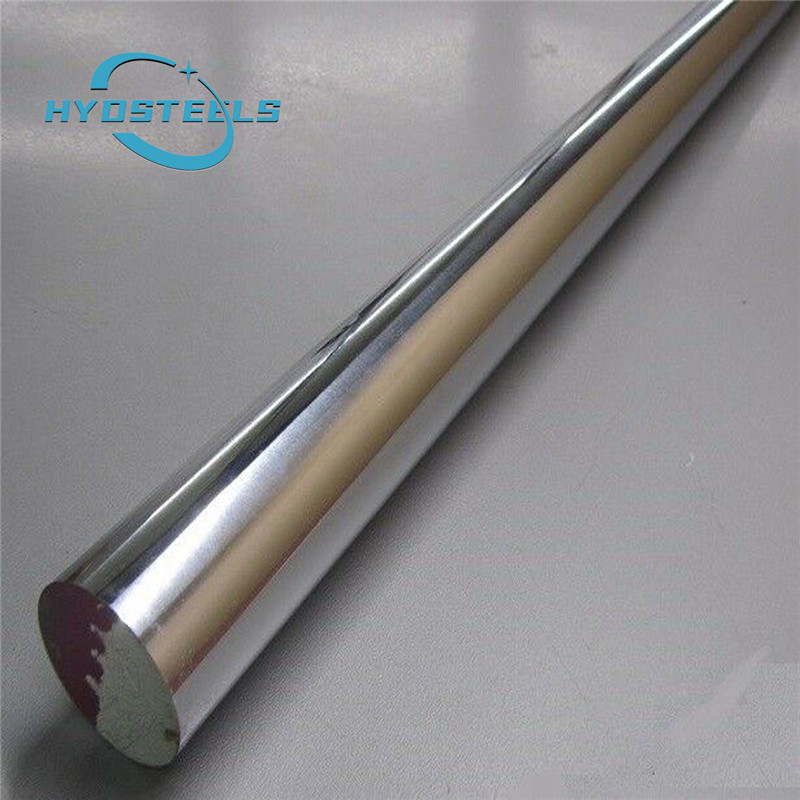

CK45 Hard Chrome Rod
| Steel Grade | C45E (EN 10083) |
| Tolerance | ISO f7 |
| Length | 4000mm, 5800mm, 6000mm, 7500mm can be choice |
| Roughness | max. Ra0.20µm (statistic average: 0.05 - 0.15µm) |
| Hardness | HRC 15-25, HRC 20-30 (Based on different heat treatment) |
| Chrome Thickness | 20-50µm can be choice |
| Chrome Hardness | min. 900 HV (0.1) |
| Straightness | <=Ø16 mm: max. 0.3 mm : 1000 mm > Ø16 mm: max. 0.2 mm : 1000 mm |
| Mechanical Properties | According to EN 10083-2 |
CK45 Induction Hardened Chrome Rod
| Steel Grade | C45E (EN 10083) |
| Tolerance | ISO f7 |
| Length | 4000mm, 5800mm, 6000mm, 7500mm can be choice |
| Roughness | max. Ra0.20µm (statistic average: 0.05 - 0.15µm) |
| Hardness | HRC 55+/-2 |
| Hardened Depth | 0.3-3.5mm can be choice |
| Chrome Thickness | 20-50µm can be choice |
| Chrome Hardness | min. 900 HV (0.1) |
| Straightness | <=Ø16 mm: max. 0.3 mm : 1000 mm > Ø16 mm: max. 0.2 mm : 1000 mm |
| Mechanical Properties | According to EN 10083-2 |
Quality Inspection and Testing
Packing and Delivery
Equipment Show
As one of the biggest honed tube piston rod manufacturers in China, we equipped with advanced production facilities and inspection facilities for honed pipe manufacturing and inspection. Below manufacturing machines for steel honed tubing and chrome plated hard bar
Why Choice Us
1.Professional, rich experience, reliable.
2.One-stop collection for honed tube, chrome rod, casting cylinder components.
3.Full range of size and material, ready stock goods with fast delivery
4.Customizable, non-standard sizes available
5.Small quantity acceptable
6.Refund or replace if any quality issue.
We sincerely hope there would be a chance for us to start business and build long term relationships may from an inquiry soon.
