CK45 Hard Chrome Plated Piston Rod for Hydraulic Cylinder

  • ROD

  • DOOHARVEST

Availability:
Quantity:

1、 Product Description



Professional manufacturer of honed tube & chrome rod/bar/shaft, founded in 2004, one of biggest manufacturer in China.

The various types of chrome bars in our stocks are

Hard chrome bars/ Piston rod in CK45, 20MnV6, 42CrMo

Induction hardened chromed bars / piston rods in CK45, 20MnV6, 42CrMo

Hollow chrome rods in CK45, 20MnV6, 42CrMo

Nickel + chrome plating bars

 b30

Item

Hard Chromed Rod

Induction Hardened Chromed

Nickel and Chrome Plating Bars

Steel   Grade

C45E (EN 10083)

C45E   (EN 10083)

C45E,20MnV6/38MnVS6

Tolerance

ISOf7

ISOf7

ISOf7

Roundness

Diameter tolerance / 2

diameter   tolerance / 2

diameter   tolerance / 2

Standard   Length

-for Ø ≤ 60 mm: 5600 -6200mm

-for Ø≥60 mm: 5800 -7200mm

Upon request: special lengths on all   diameters

- for Ø ≤ 60 mm: 5600 – 6200 mm

- for Ø ≥ 60 mm: 5800 – 7200mm

Upon request: special lengths on all   diameters

Up to 6000 mm



Upon request: special lengths on all diameters

Surface   Roughness

Ra max. 0.20 µm

(statistic average: 0.05-0.15 µm)

Ra   max. 0.20 µm

(statistic average: 0.05- 0.15 µm)

Ra max. 0.20 µm (statistic average:   0.05-0.15 µm)

Chrome   Layer Thickness

min.   900 HV (0.1)



min.   900 HV (0.1)

min.   25 µm

Straightness

≤ Ø16 mm: max. 0.3 mm: 1000 mm

> Ø16 mm: max. 0.2 mm: 1000 mm

≤ Ø16 mm: max. 0.3 mm: 1000 mm

> Ø16 mm: max. 0.2 mm: 1000 mm

max.0.20   mm/1000 mm



2Equipment Show

As one of the biggest honed tube piston rod manufacturers in China, we equipped with advanced production facilities and inspection facilities for honed pipe manufacturing and inspection. Below manufacturing machines for steel honed tubing and chrome plated hard bar

equipment

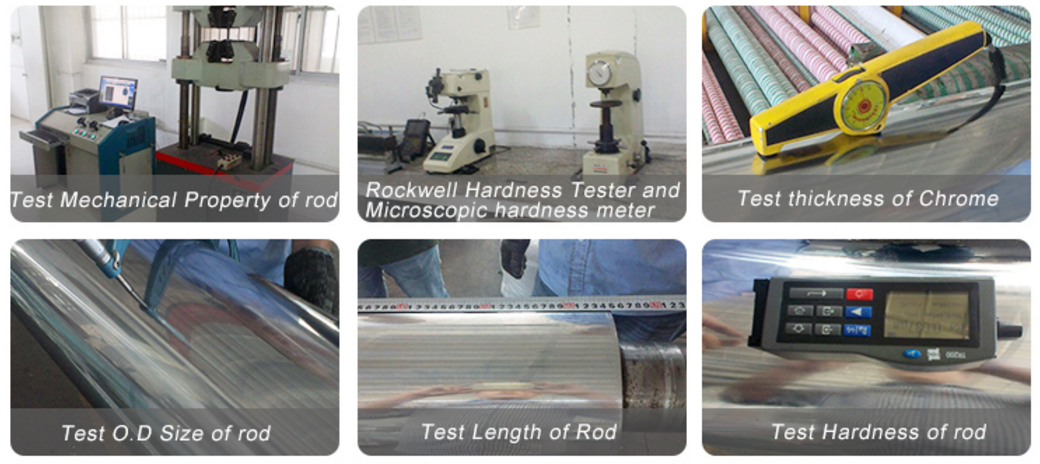

3Testing & Inspection

equipment2

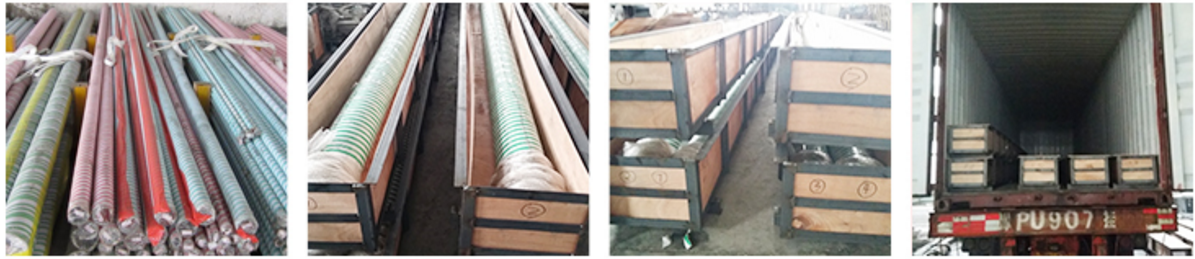

4Packing

packagea

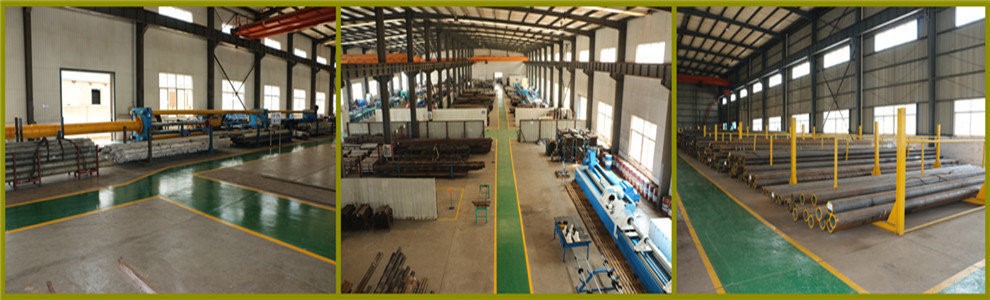

5Company Show

Major in Honed tube, Chrome rod, Cylinder parts, 15+ years’ experience. Factory was established under modern management system and technologies in 2003. It covers an area of 40,000 sq. meters, all processing control include cold-drawn, heat treatment, honing, peeling, grinding, polishing. There ’re 60+ sets of advanced equipment and 70+ skilled technical workers, annual output over 20,000 tons.

factory1

6Our Services

<Could make product for customer according to customer samples or drawings

<Submit samples with official inspection reports including  material report, mechanical property report and dimensional report

<Can provide the third party inspection report

<Could provide at least one year’s quality guarantee after customer receives the products

<We could supply storage service for customer if required.
