DOOHARVEST
8412909090
Availability: | |
---|---|
Quantity: | |
Product description:
1. Material: CK45, SAE1045, 4140, 4340, JIS45C, 40Cr, 42CrMo
2. Diameter: Φ 6-500 mm
3. Length: max 16m
4. Chrome layer: 20 micron (min)
5. Hardness of the chrome layer: 800HV-1150HV
6. Roughness: Ra ≤0.2u
7. Straightness: ≤ 0.2/1000
8. Diameter tolerance: ISO f7
9. Roundness: the deviation of roundness is 50% of the diameter tolerance at the most.
10. Supply condition: Hard chrome plated/ Hardened and tempered/ Induction hardened
Hard Chrome Plated Hydraulic Cylinder Piston Rod
Size: | OD: 40-320mm ID :30-280mm |
Length: | 1m -9m |
Material: | CK45/ ST52/ 20MnV6/ 42CrMo4/ 40Cr/ bearing steel/ stainless steel |
Tolerance | ISO f7 |
Chrome thickness: | 20~30micron |
Hardness of the chrome layer: | 800HV (min) |
Roughness: | Ra 0.2micron (max) |
Straightness: | 0.2/1000mm |
Yield Strength | ≥350 M p a |
Tensile Strength | ≥580 M p a |
Elongation | ≥ 15% |
Supply condition: | 1.Hard chrome plated |
2.Induction hardened | |
3.Quenched & Tempered | |
4.Induction hardened with Q&T |
Application
which are widely used in hydraulic and Pneumatic cylinder for automobile,engineering machinery, textile machinery, printing machinery, oil drilling and other field.
Packing and delivery
1. Small OD: In hexagonal bundle with steel strips
2. Large OD: In bulk
3. Wrapped in waterproof plastic woven bag
4. Filled in wooden cases
5. As required
Delivery Detail: Shipped in 7-15 days afterreceived the balance payment

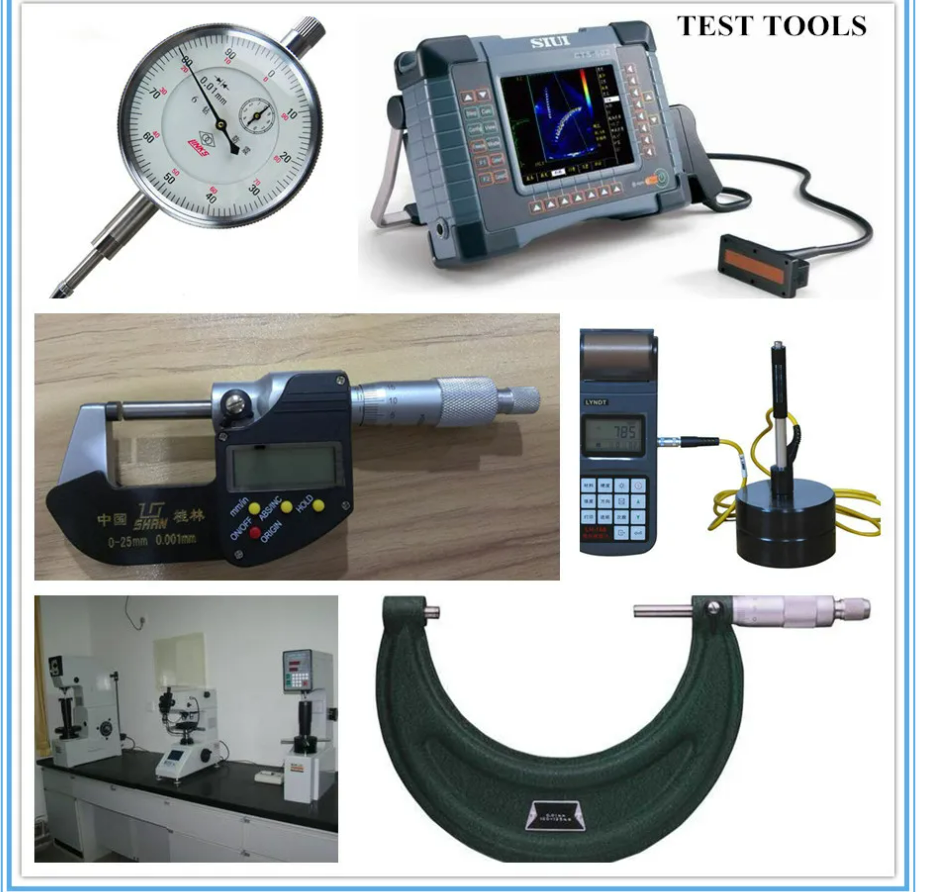

Our Quality Test
We are equipped with various advanced testing machine as Hardness Tester, Universal Tensile Testing machine, quality Thickness gauges, Ultrasonic flaw detector and so on which can exhaustive
Analysis of the product and promise the quality.
We sincerely hope there would be a chance for us to start business and build long term relationships may from an inquiry. please feel freely contact.
Ginger
Mob. & WhatsApp: +86 13336363960
Email: ginger@dhonedtube.com
